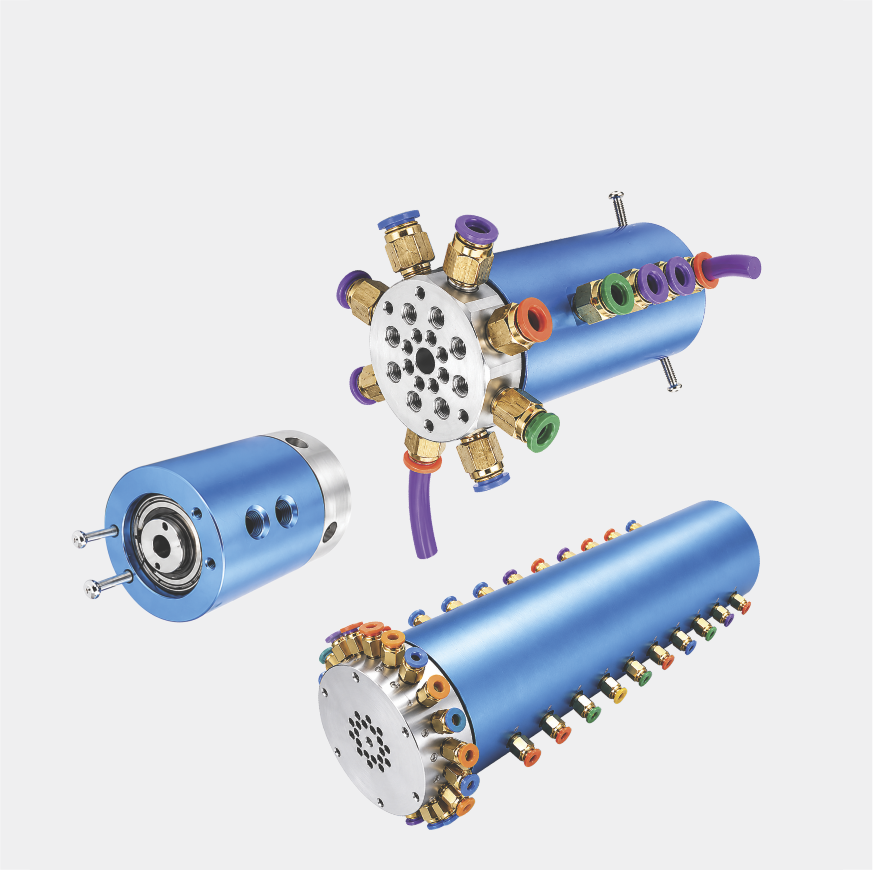

MULTI PASSAGE / MULTI PORT / MULTI CHANNEL ROTARY JOINTS
FOR PNEUMATIC / HYDRAULIC & ELECTRICAL APPLICATIONS
FOURWENTS
“FPN-HY-EP”
SERIES ROTARY JOINTS ARE PRECISION DEVICES DESIGNED TO TRANSFER PNEUMATIC MEDIA
(VACUUM, AIR, GAS)
,
HYDRAULIC FLUIDS (OIL, WATER, COOLANTS)
, ELECTRICAL POWER, AND DATA SIGNALS
(ETHERNET, USB, HDMI, ENCODER, CONTROL SIGNALS) CONCURRENTLY, WHILE
ENABLING
CONTINUOUS 360° ROTATION
OF DEVICE

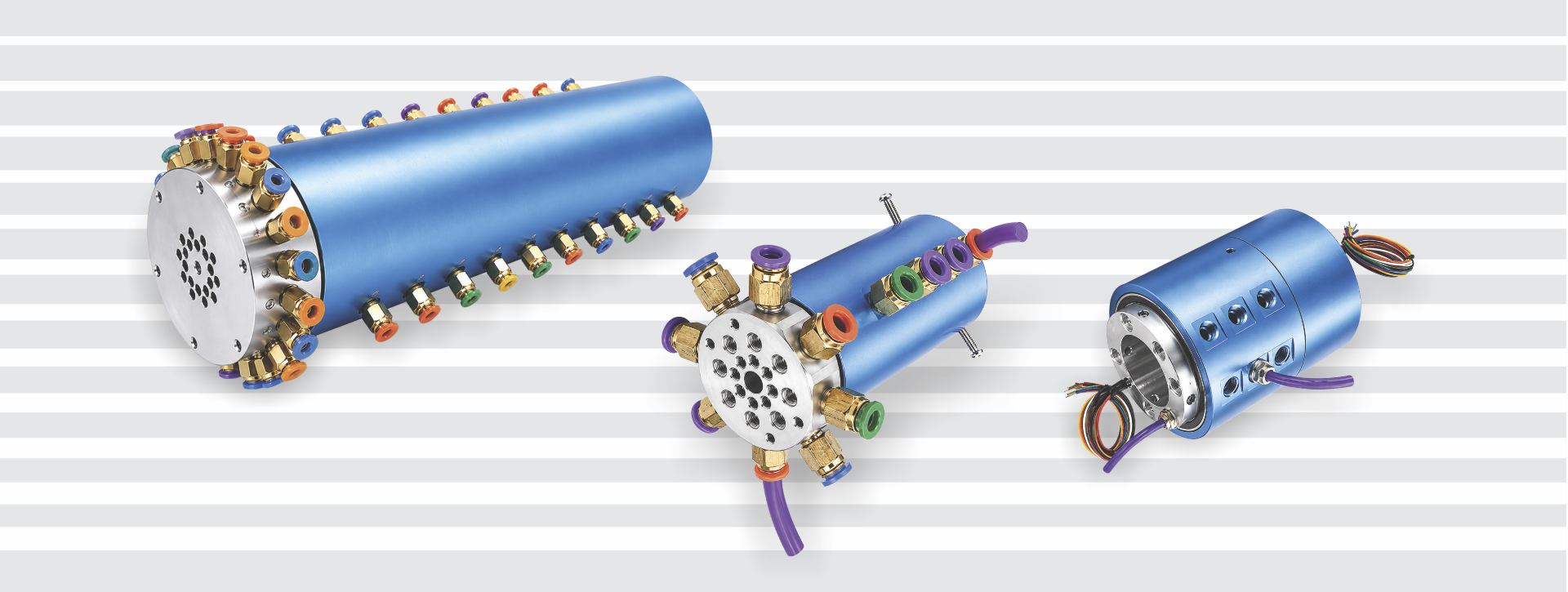

TYPICAL FEATURES / TECHNICAL SPECIFICATION
CAPABLE OF TRANSMITTING PNEUMATIC AND HYDRAULIC MEDIA SUCH AS STEAM,
COMPRESSED AIR, WATER, HOT OIL, HYDRAULIC OIL, VACUUM, VARIOUS LIQUIDS, ACIDS,
AND BEVERAGES.
CONFIGURABLE WITH 1 TO 24 FLUID PASSAGES AND UP TO 300 POWER/SIGNAL CHANNELS.
STANDARD PORT OPTIONS: G 1/8", G 3/8", M 5, G 1/4", G 1/2"
SUPPORTS SIMULTANEOUS TRANSMISSION OF MIXED POWER AND SIGNALS INCLUDING USB,
HDMI, GIGABIT ETHERNET, VGA, DVI, RF, SERVO MOTOR SIGNALS, AND INDUSTRIAL
BUS SLIP RINGS.
COMPATIBLE WITH PIPE SIZES: 4MM, 6MM, 8MM, 10MM, 12MM, AND 15MM.
F-PNE-HYD SERIES
FOR HIGH PRECISION APPLICATIONS IN AEROSPACE, RADAR & MILITARY
MULTI-CIRCUITS SMALL SIZE SLIP RINGS
F-PNE-HYD -110

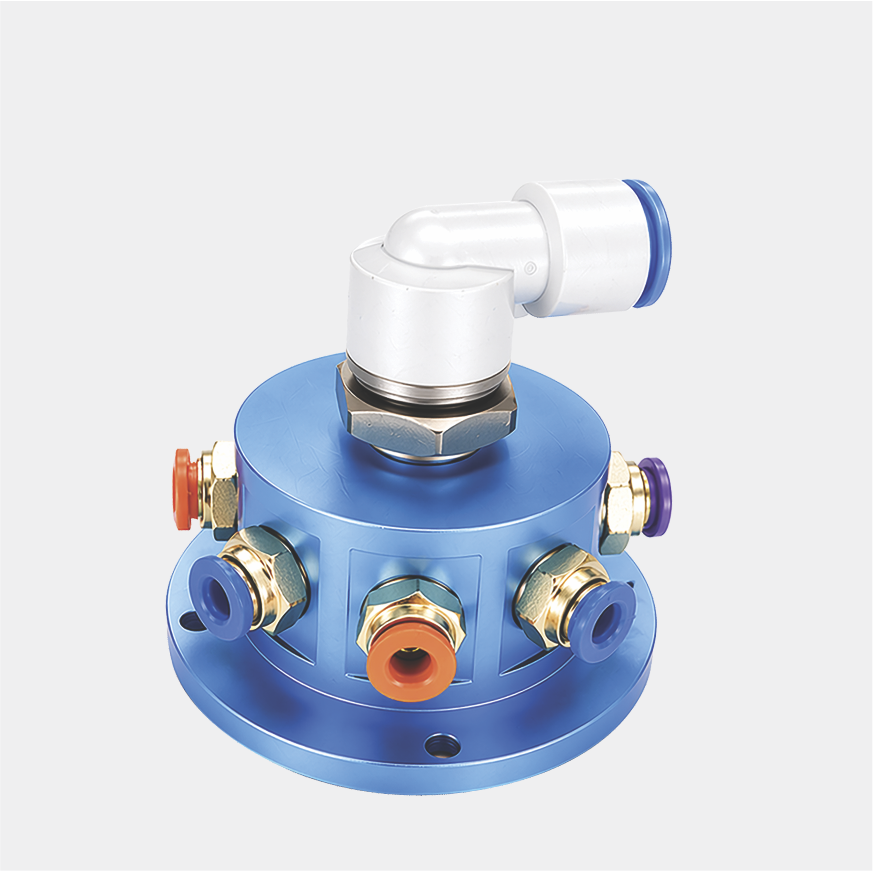

1PASSAGE IN AND 8 PORT OUT ROTARY JOINT
DESIGN FEATURES
1 INLET PORT 15mm PIPE (G1/2" PORT) AND 8 OUTLET 8mm PIPE (G1/8"
PORT)
CAN TRANSFER 8 VARIOUS MEDIUMS INCLUDING VACUUM, COMPRESSED
AIR, STEAM, POSITIVE PRESSURE, NEGATIVE PRESSURE, HOT OIL AND
COOLING WATER.
CAN COMBINE TO TRANSMIT ELECTRICAL POWER AND SIGNAL
PORT SIZE: 1 INLET ( G1/2" PORT ) 8 OUTLET ( G1/8"PORT )

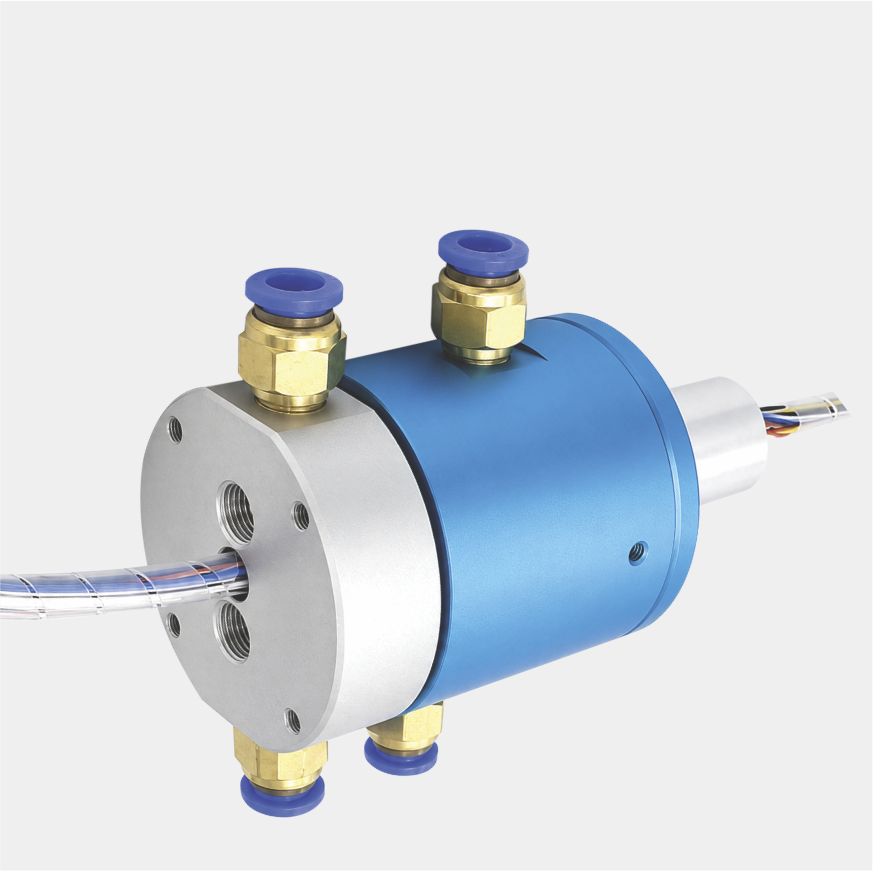

2 PASSAGE G 1/8" PORT (6mmto8mm PIPES) + ELECTRICAL POWER /
SIGNAL
SUPPORT G 1/8" PORT FOR 4mm to 8mm PIPES CAN TRANSFER VARIOUS
MEDIUMS INCLUDING COMPRESSED AIR, VACUUM, STEAM, POSITIVE
PRESSURE, NEGATIVE PRESSURE, HOT OIL AND COOLING WATER WHEN 360
ROTATING
CAN COMBINE TO TRANSMIT ELECTRICAL POWER AND SIGNAL
4 PASSAGE M5 PORT (4mm PIPES) +
ELECTRICAL POWER / SIGNAL
M5 PORT FOR 4mm PIPES CAN TRANSFER VARIOUS MEDIUMS INCLUDING
COMPRESSED AIR, VACUUM, STEAM, POSITIVE PRESSURE, NEGATIVE PRESSURE,
HOT OIL AND COOLING WATER WHEN 360 ROTATING
CAN COMBINE TO TRANSMIT ELECTRICAL POWER AND SIGNAL.
PORT SIZE: (M5)
PIPE SIZE: 4mm TO 6mm
AVAILABLE IN PASSAGES: 2 / 4 / 6 / 12 / 16 AND 24
FPN-HY-EP -440

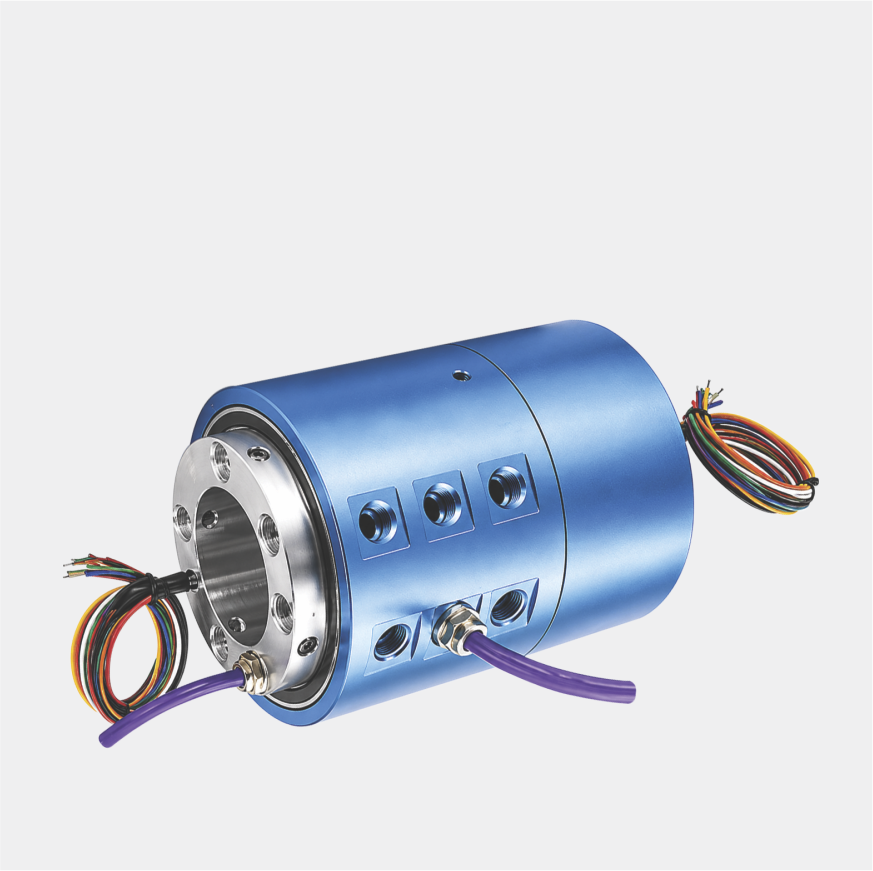

2 to 6 PASSAGE HOLLOW SHAFT ROTARY JOINT
( WITH CENTER HOLE 20 / 50 / 100MM )
DESIGN FEATURES
2 PASSAGE (M5 PORT, 4 TO 6mm PIPES+
ELECTRIC POWER / SIGNAL)
CAN TRANSFER 8 VARIOUS MEDIUMS INCLUDING VACUUM, COMPRESSED
AIR, STEAM, POSITIVE PRESSURE, NEGATIVE PRESSURE, HOT OIL AND
COOLING WATER.
CAN COMBINE TO TRANSMIT ELECTRICAL POWER AND SIGNAL.
PORT SIZE: M5
PIPE SIZE: 4mm TO 6mm
AVAILABLE IN : 20mm / 50mm / 100mm CENTER HOLE
